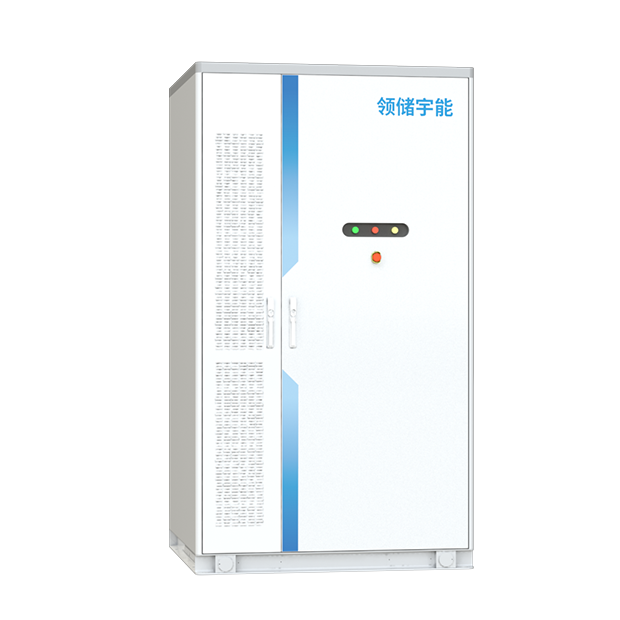

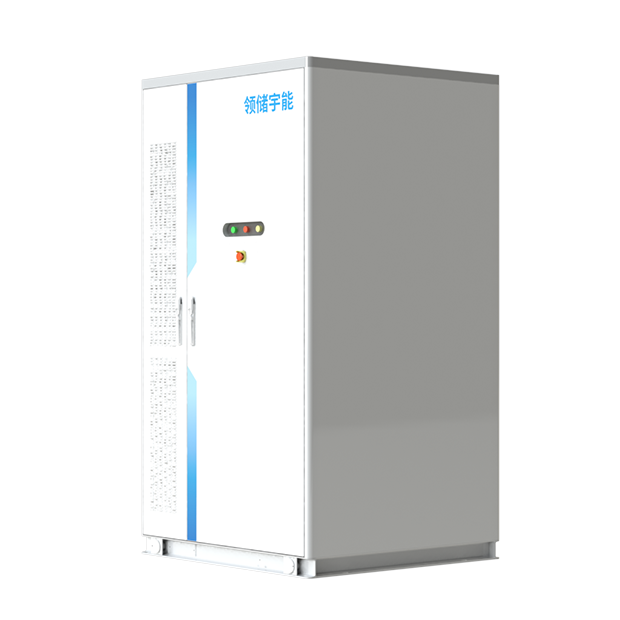

AES 400L

Product advantage
  • System security
    Cluster-level battery management, "5 in 1" online monitoring, standard with perfluorohexanone fire prevention
  • Flexible configuration
    Multi-machine parallel, convenient expansion, flexible site layout
  • Easy installation
    "all in one" integrated design, convenient and efficient transportation/installation/operation
  • Efficient operation and maintenance
    Battery single cluster management, eliminate the intercluster circulation
  • Intelligent liquid liquid-cooled temperature control
    Reduce system auxiliary power consumption, cloud intelligent operation and maintenance, and full life cycle management
Technical parameter
  • Rated power (2 hours) 200kW
    Rated power (3 hours) 134kW
    Rated output voltage 690V
    Ac current distortion rate <3%
    Dc component <0.5%
    Rated network frequency 50Hz
  • Cell type LFP-302Ah
    Battery module 1P52S/50.3kWh
    Battery system configuration 1P416S/402kWh
